If you’re budgeting a new part, cnc machining cost comes down to a few predictable levers: machine time, setup, material, complexity/tolerances, finishing, and quantity. Prices vary by region and capability, so treat the ranges below as U.S.-focused benchmarks, not absolutes.
U.S. benchmark CNC machining pricing is often driven by the shop’s CNC machining hourly rate. Recent industry guides commonly reference the following ranges: 3-axis machining at $35–$55/hr, 4-axis machining at $45–$125/hr, and 5-axis machining at $75–$150+/hr. These ranges vary depending on machine capability, material, tolerance requirements, part complexity, and supplier location.
For a quick per-part estimate: if a simple aluminum bracket takes 15 minutes to machine on a 3-axis mill at $90/hr, the machining time portion is 0.25 hr × $90 = $22.50. Add material, a portion of setup cost, surface finishing, inspection, and shipping to reach the final CNC machining cost per part.
Engineering note: Tight tolerances and extra setups may look minor on a drawing, but they can quietly add minutes per feature and hours per production lot.

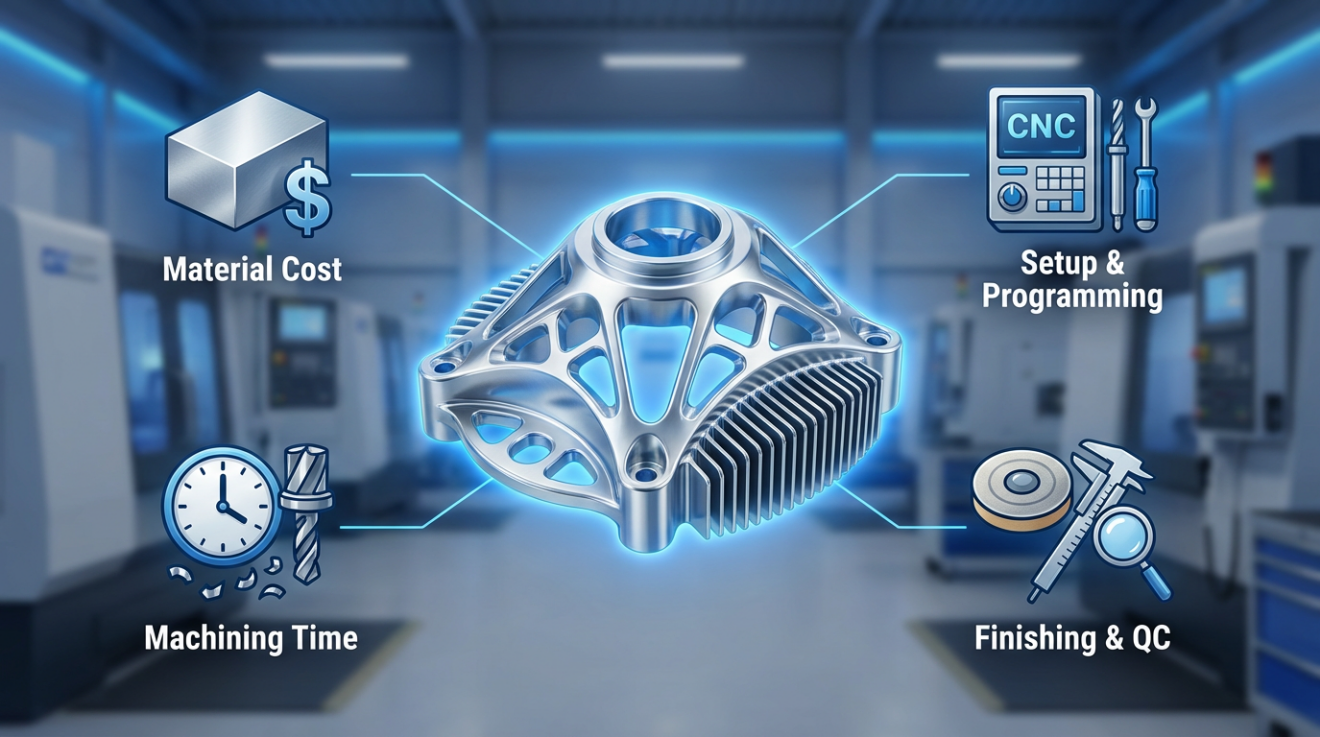

Material: You pay for raw stock and material waste. Machinable alloys such as 6061-T6 aluminum cut faster and reduce tool wear compared with stainless steel or titanium, which can slow feed rates and require more tool changes. See practical notes in Komacut’s cost explainer (2024).
Machining time: This is one of the core cost drivers. Total cost scales with cycle time × hourly rate, plus tool changes, probing, and inspection requirements. As Rapid Axis explains (2025), precision requirements and machine class can push rates upward.
Complexity and tolerances: Deep pockets, thin walls, complex contours, and tight GD&T requirements add CAM time, slower cutting passes, and more inspection. Hubs outlines how ISO-based tolerances and finishes affect machining time and quality control steps in its tolerance and finish guide.
Setup, programming, and batch size: Setup and CAM programming are fixed non-recurring costs. For prototypes, these costs can dominate the unit price. For larger batches, they are amortized across more parts, lowering the CNC manufacturing cost per unit. Unionfab’s breakdown highlights setup, finishing, and quality control as distinct line items in its price guide.
Surface finishing, quality inspection, and shipping: Anodizing, plating, heat treatment, bead blasting, and documented inspection can add both cost and lead time. Expedited shipping or overseas freight also affects the final project cost.

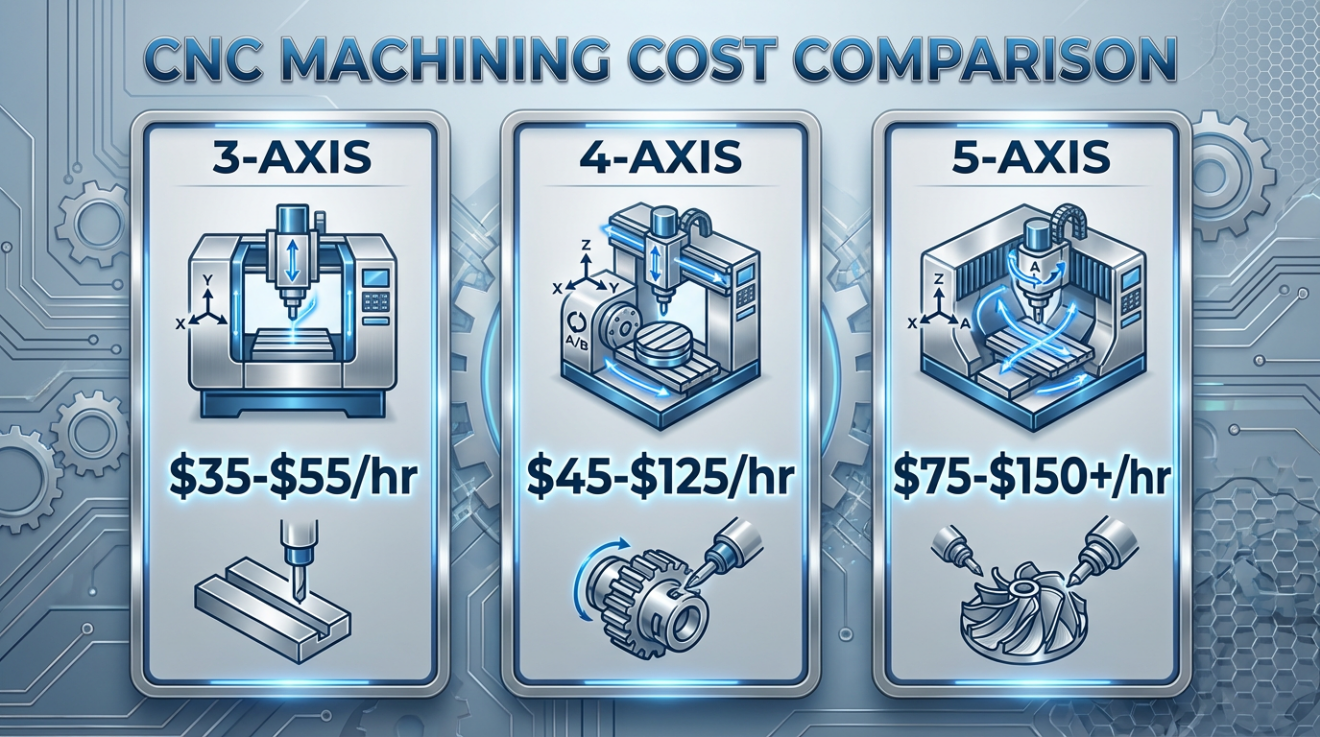

Common U.S. benchmark rates used by buyers for quoting reference:
3-axis mills/lathes: approximately $35–$55/hr
4-axis machining: approximately $45–$125/hr
5-axis machining: approximately $75–$150+/hr
Worked example: aluminum 6061 bracket, simple geometry, 15-minute cycle time on a 3-axis machine at $90/hr.
Machining time portion: 0.25 hr × $90 = $22.50
Material and consumables: approximately $3.50
Setup and programming cost: $180
Cost per part at 10 pcs: $22.50 + $3.50 + ($180 / 10) ≈ $44.00 before surface finishing, inspection, and shipping.
Cost per part at 100 pcs: $22.50 + $3.50 + ($180 / 100) ≈ $27.80 before surface finishing, inspection, and shipping.
These numbers align with common CNC machining cost factors discussed by industry sources. Economies of scale from amortizing setup costs can be substantial. Simple parts may cost tens of dollars at modest volumes, while complex geometry, tighter tolerances, harder materials, or 5-axis features can increase costs significantly. See corroborating ranges in Unionfab’s guide (2024) and Rapid Axis’s overview (2025).
Consolidate setups: Design parts so more features can be reached in one orientation. If multiple re-clamping steps can be eliminated, 4-axis or 5-axis machining may reduce total production time despite a higher hourly rate.
Loosen non-critical tolerances: Apply tight tolerances only where function requires them. Standardizing hole sizes, radii, and surface finish requirements can reduce machining time and inspection workload.
Choose machinable materials and standard stock: Materials such as 6061 aluminum and standard stock sizes can reduce cycle time, tool wear, and material waste in prototype machining and low-volume CNC machining projects.
Buyers get more accurate CNC machining quotes when RFQs are complete, clear, and technically specific. A complete RFQ should include:
3D CAD files such as STEP or IGES, plus a PDF drawing with GD&T, thread details, and critical dimensions.
Exact material specifications, such as 6061-T6 aluminum or 304 stainless steel, including any stock or temper preferences.
Quantity tiers, such as 10, 50, and 100 pcs, to show potential price breaks.
Tolerance requirements and surface roughness targets, with truly critical features clearly marked.
Surface finishing and secondary operations, such as Type II anodizing, bead blasting, heat treatment, or plating.
Inspection and documentation requirements, such as FAI, CMM reports, or material certificates.
Lead time and shipping requirements, including standard or expedited delivery.
A typical CNC machining quote may include setup and programming cost, machine time, material and consumables, surface finishing, secondary operations, inspection, documentation, and shipping. This mirrors transparent cost breakdowns in Unionfab’s pricing overview (2024) and the cost drivers summarized by Komacut (2024).
A: The biggest CNC machining cost drivers are cycle time, CNC machining hourly rate, setup and programming, material choice, material waste, part complexity, tolerance requirements, surface finishing, inspection, and logistics. Quantity also strongly affects pricing because setup costs can be spread across more parts.
A: There is no universal price. For simple aluminum parts with standard tolerances, CNC machining cost per part can be in the tens of dollars at modest quantities. Complex geometries, tight GD&T requirements, exotic materials, premium surface finishes, or detailed inspection requirements can push costs much higher. A basic pricing model is: cycle time × hourly rate + material cost + setup cost divided by quantity.
A: CNC machining requires precision equipment, skilled programming, careful setup, cutting tools, inspection, and quality assurance. Low-volume parts often feel expensive because fixed setup and programming costs are spread across fewer units. Larger batches usually reduce the per-part price by amortizing setup costs.
Notes on variability: CNC manufacturing cost changes with geometry, tolerance requirements, machine class, material, region, supplier workload, and quality documentation needs. Use these ranges for early budgeting, then confirm pricing with a detailed RFQ and supplier feedback.
