5-Axis CNC Machining

Technical Data

5-Axis CNC Machining Parameter Specifications

Our manufacturing capabilities and precision standards for 5-axis machined parts.

Machining Capabilities

Machining Processes5-Axis Machining, CNC Milling, Drilling, Tapping, Complex Surface Machining
Machining Type5-axis machining available
Max Part SizeUp to 1000 × 800 × 500 mm
MaterialsAluminum, Stainless Steel, Carbon Steel, Brass, Copper, Titanium, Tool Steel

Precision & Quality

Critical Tolerance±0.01 mm for precision machined features
General ToleranceBased on material, part size, structure, and drawing requirements
Surface QualityMachined, polished, brushed, sand blasted, anodized, or plated finishes available
InspectionCMM, optical measurement, and full dimensional reports available

Production & Lead Time

Prototype Lead Time 3 – 7 business days
Production Lead Time 7–15 business days
MOQ 1 piece (prototype supported)
Production TypePrototype, low-volume, and batch production supported

Technical Requirements

File FormatsSTEP, IGES, STP, DXF, DWG, PDF, STL
Suitable PartsComplex surfaces, multi-angle features, precision structural parts
Minimum Feature SizeSubject to material, tool access, depth, and part geometry
Engineering SupportDFM review and machining feasibility evaluation available

Note: Specifications are for reference only. Final tolerance, lead time, surface finish, and manufacturability depend on material, part design, quantity, and project requirements.

What We Offer

5-Axis CNC Machining Capabilities

Engineered for complex geometries and tight tolerances — our 5-axis machining centers deliver superior accuracy, reduced setups, and high-efficiency production for demanding applications.

Complex Geometry

Complex Geometry 5-Axis Machining

Designed for highly complex free-form surfaces and intricate geometries, our 5-axis machining enables precise manufacturing of parts that are difficult or impossible with traditional methods.

Free-form 3D surface machining
Deep cavities and complex contours
deal for aerospace and mold components
Reduced need for multiple setups

Ultra Precision

Single-Setup High-Precision Machining

Simultaneous 5-axis movement allows parts to be completed in a single setup, significantly improving accuracy while minimizing repositioning errors.

Single-setup machining reduces tolerance stack-up
Typical tolerance up to ±0.005–0.01 mm
Improved surface finish and consistency
Reduced manual intervention and error

Critical Applications

Advanced 5-Axis Machining for Critical Applications

Our 5-axis capabilities support high-performance industries requiring precision, reliability, and complex part manufacturing.

Aerospace structural and turbine components
Medical implants and surgical parts
High-end automotive and performance parts
Precision molds and tooling

Why 5-Axis Machining Wins

Advantages of 5-Axis CNC Machining

5-axis CNC machining offers unmatched geometric flexibility, enabling one-setup complex part production with superior surface finish and reduced manufacturing lead times.

Lead Time (Production)

Achieve tolerances as tight as ±0.005 mm with consistent part-to-part repeatability across large production runs.

File Formats

5-axis simultaneous milling machines undercuts, compound angles, and free-form surfaces without multiple repositioning steps.

Min Feature Size

Mills virtually any material — aluminum alloys, stainless steel, titanium, hardened steel, copper, and high-performance plastics.

Inspection

Achieve surface roughness Ra 0.4–3.2 μm with fine-finishing passes, reducing or eliminating secondary polishing operations.

Our Commitment

Why Choose Tongyong Hardware

Guided by “Go Global · Co-Create,” we support global B2B customers with custom metal parts manufacturing — from engineering review and prototyping to quality control and delivery coordination.

Engineering Support

DFM review, material advice, process planning, and feasibility support based on drawings or samples.

Integrated Manufacturing

Machining, forming, casting, tooling, finishing, inspection, packaging, and delivery coordination under one workflow.

OEM & Project Support

Engineering support for product development, OEM sourcing, and repeat production projects, with NDA available.

Prototype to Production

Support for samples, low-volume trials, and batch production as projects move toward stable supply.

Quality Control

Material checks, process monitoring, dimensional inspection, surface review, and final packaging checks by project needs.

Global Delivery

Export packaging and delivery coordination for international B2B projects, with responsive communication throughout the process.

60+

CNC & Automated Production Machines

120+

Engineering, Technical & Quality Team Members

500+

Global Customers Served

20+

Years of Manufacturing Experience

Our Process

How We Bring Your Idea to Life

From first inquiry to final delivery — a streamlined, transparent process designed for efficiency.

Inquiry

Send us your drawings, specifications or application requirements.

Analysis

Our engineers evaluate feasibility and suggest optimized solutions.

Quotation

Receive a detailed quote with pricing, lead time and specifications.

Sampling

Prototype samples are produced for testing and confirmation.

Production

Mass production with strict quality control at every stage.

Delivery

Secure packaging, on-time shipment and full after-sales support.

Our Work

5-Axis CNC Machining Product Cases

A selection of complex 5-axis machined components across aerospace, defense, automotive, and mold-making industries.

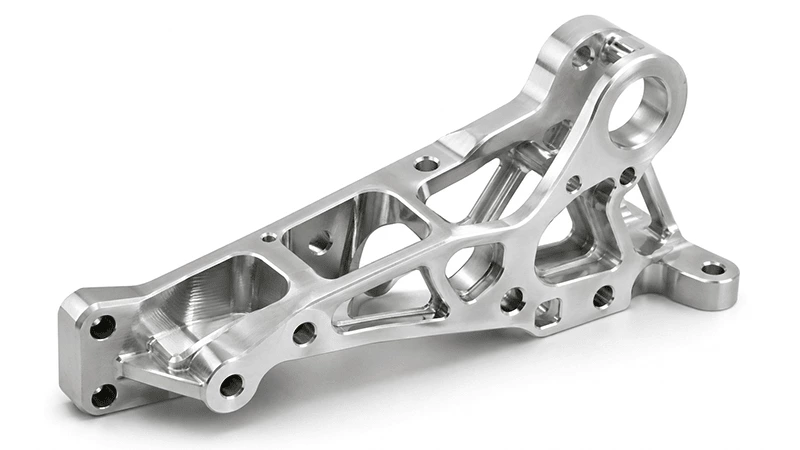

5-Axis CNC Machined Lightweight Bracket

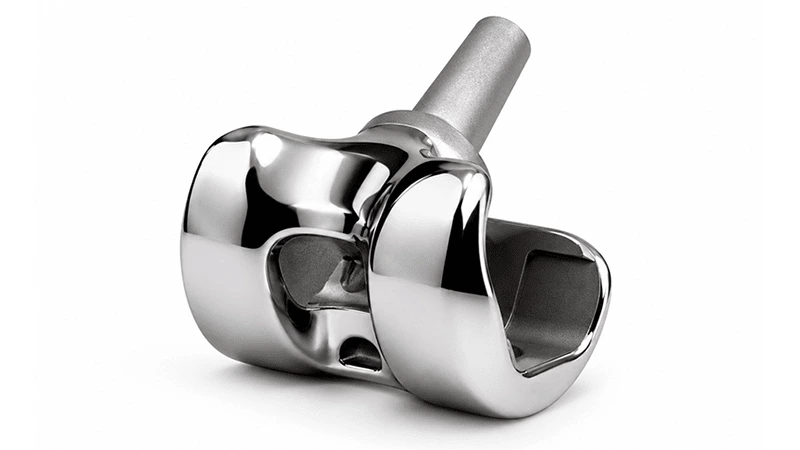

5-Axis CNC Machined Ball Joint Component

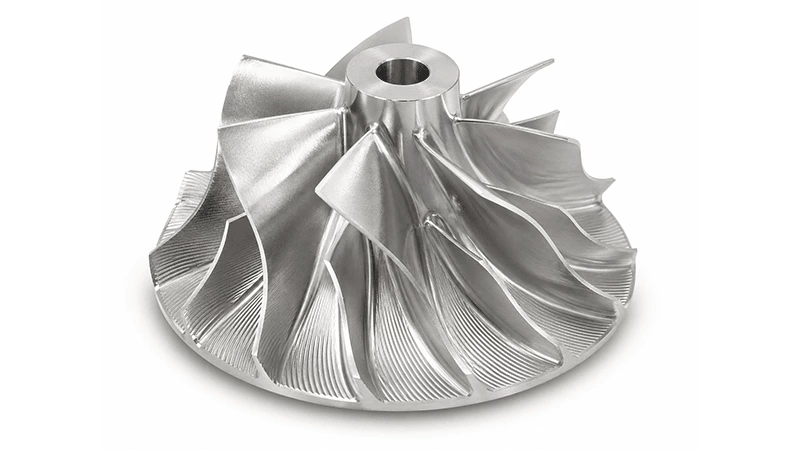

5-Axis CNC Machined Turbine Impeller

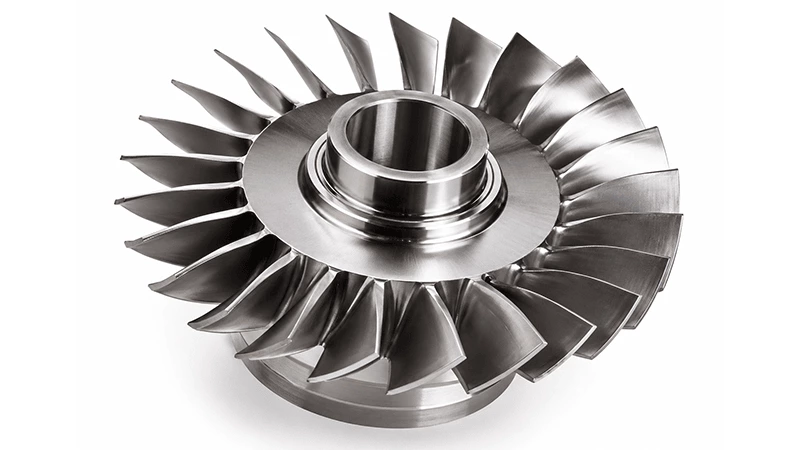

5-Axis CNC Machined Compressor Wheel

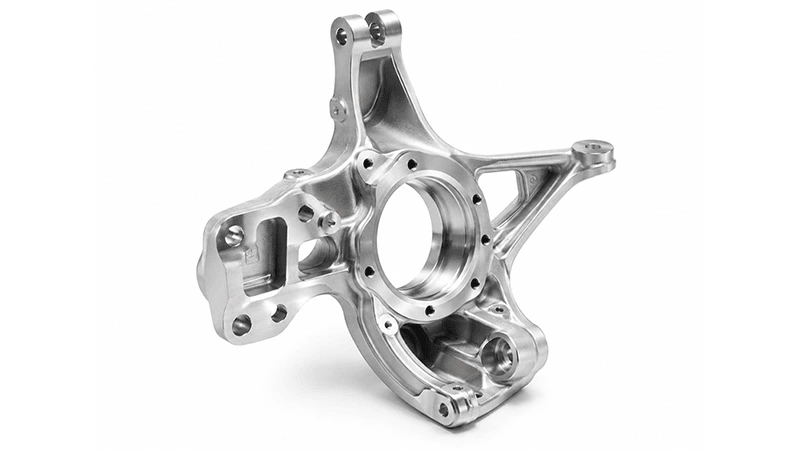

5-Axis CNC Machined Suspension Knuckle

5-Axis CNC Machined Structural Linkage Arm

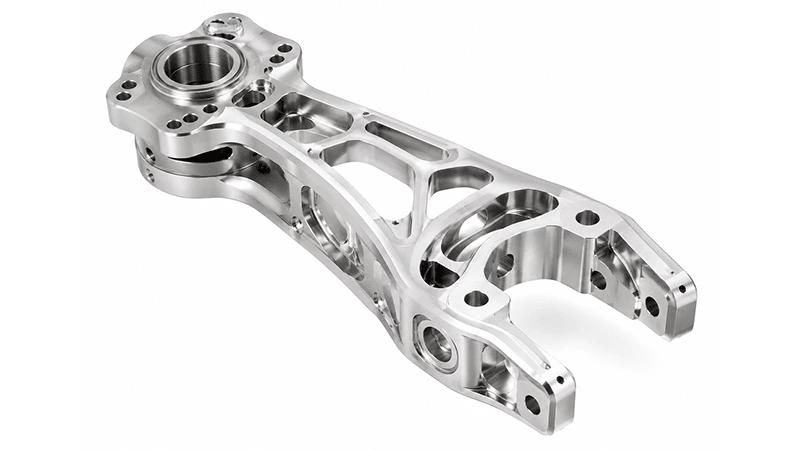

5-Axis CNC Machined Aerospace Bracket

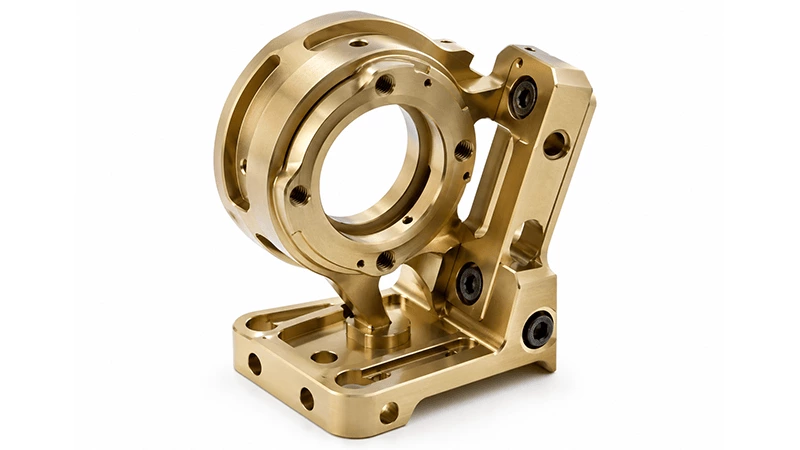

5-Axis CNC Machined Rotary Fixture Bracket

Understanding the Process

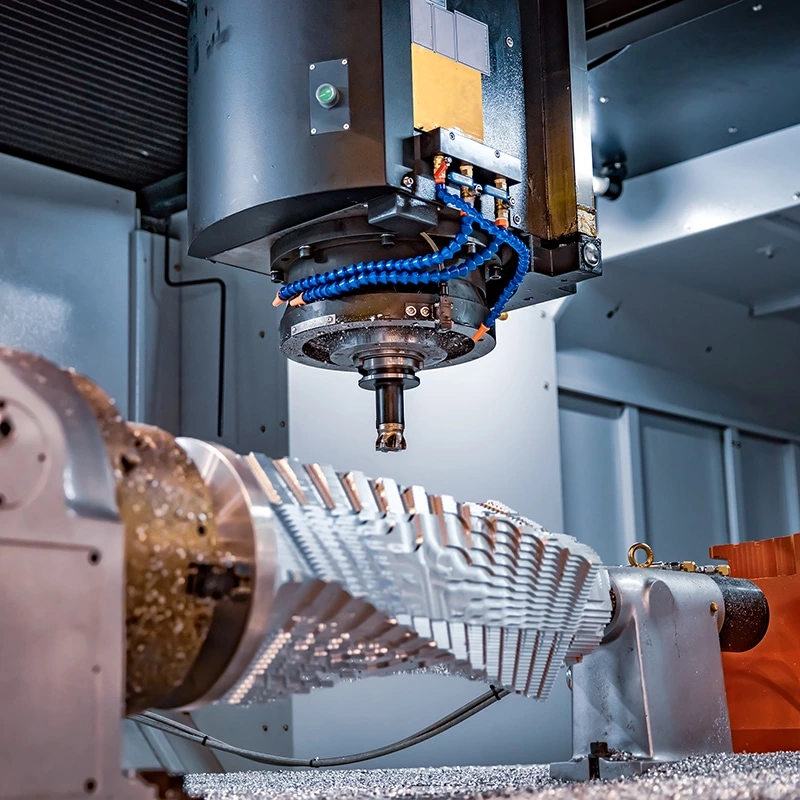

What is 5-Axis CNC Machining?

5-axis CNC machining is a high-precision subtractive manufacturing process that uses computer-controlled tools to move along five simultaneous axes (X, Y, Z linear axes plus two rotational axes, typically A and B or B and C). Unlike 3-axis machining, this allows the tool or workpiece to tilt and rotate, enabling access to all sides of a part in a single setup.

The process is engineered for creating extremely complex, free-form geometries in metals like titanium, Inconel, and hardened steels, as well as advanced composites. 5-axis machines are equipped with specialized controllers, real-time probing systems, and dynamic collision avoidance technology to ensure accuracy and safety during intricate operations.

By eliminating multiple setups, 5-axis machining minimizes positioning errors, reduces production time by up to 40%, and delivers superior surface finishes. It is the preferred method for critical components in aerospace, medical, and automotive industries, where tight tolerances and complex shapes are non-negotiable.

Complex Geometry Machining

Free-form surfaces, undercuts in one setup.

±0.01mm Ultra-Accuracy

No repositioning errors.

40% Higher Efficiency

Faster than 3-axis for complex parts.
