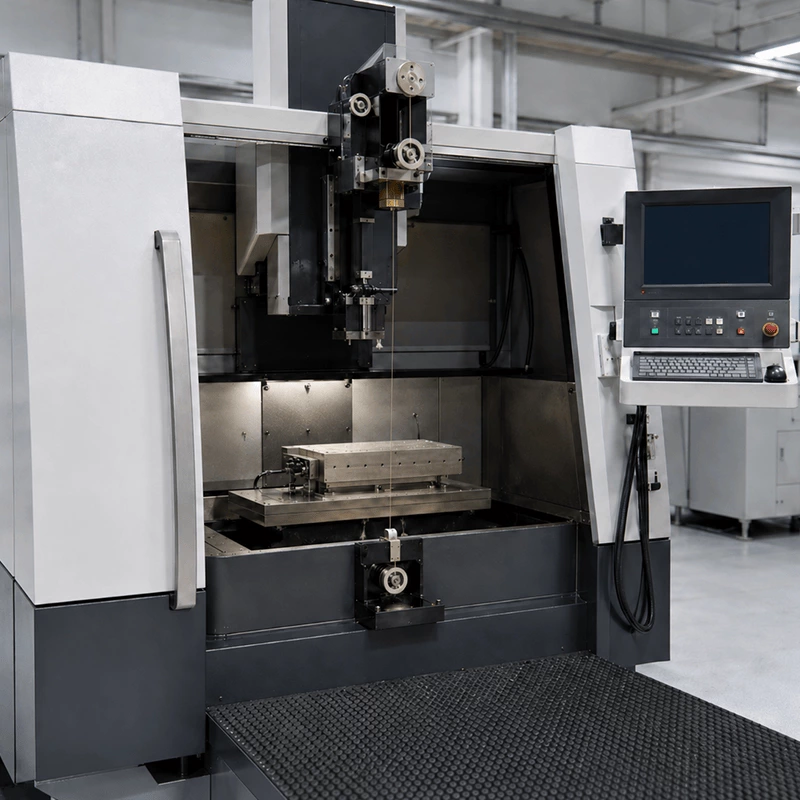

Understanding the Process
What is Wire EDM?
Wire EDM (Electrical Discharge Machining) is a non-traditional manufacturing process that uses electrical sparks to erode material from a workpiece. Unlike conventional machining, it does not rely on cutting tools, making it ideal for shaping hard or brittle materials that are difficult to machine with other methods.
The process works by immersing both the workpiece and a thin, conductive wire electrode in a dielectric fluid (like deionized water). A high-voltage electrical current is applied between the wire and the workpiece, creating sparks that melt and vaporize small amounts of material. The wire moves along a computer-controlled path, eroding the workpiece to match the desired shape, while the dielectric fluid flushes away debris and cools the area.

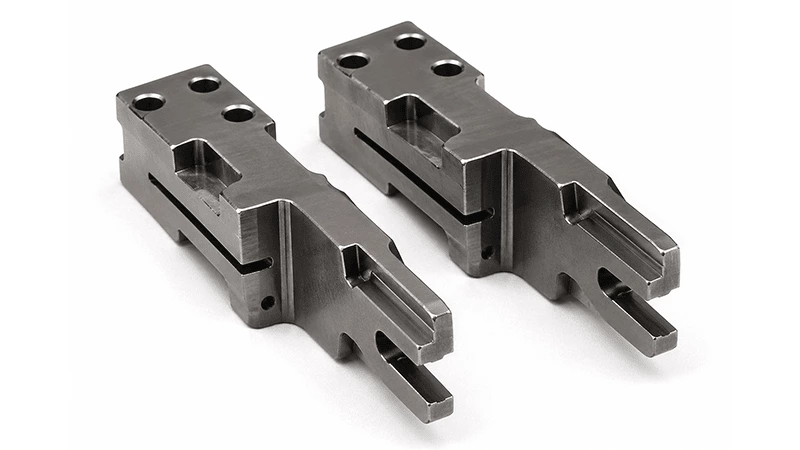

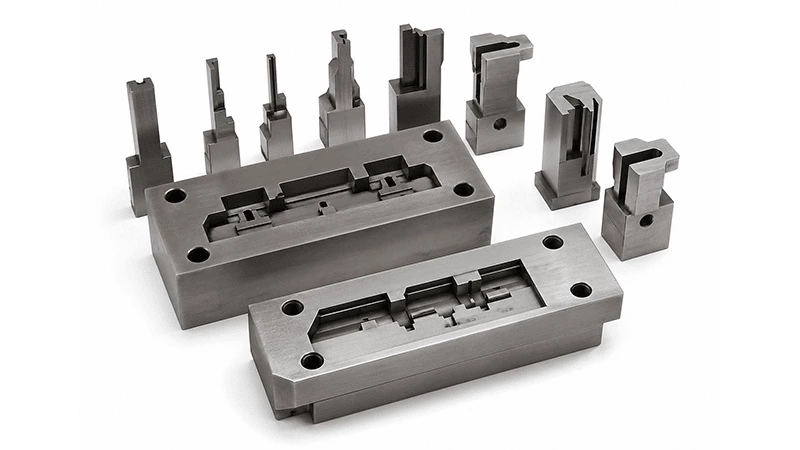

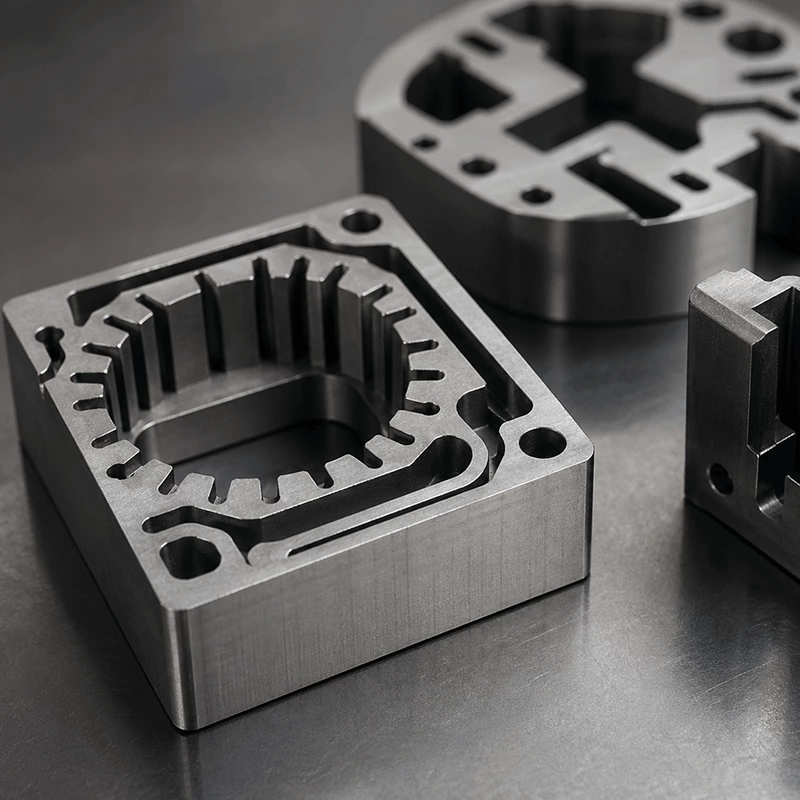

Wire EDM delivers exceptional precision, with tolerances as tight as ±0.005 mm, and can create intricate shapes, narrow slots, and sharp internal corners that are impossible with traditional tools. It is commonly used for manufacturing tool and die components, aerospace parts, medical implants, and automotive components made from hardened steels, titanium, and exotic alloys. Since there is no physical contact between the wire and workpiece, it eliminates material stress and tool wear, ensuring consistent quality even for complex parts.
